Product Overview

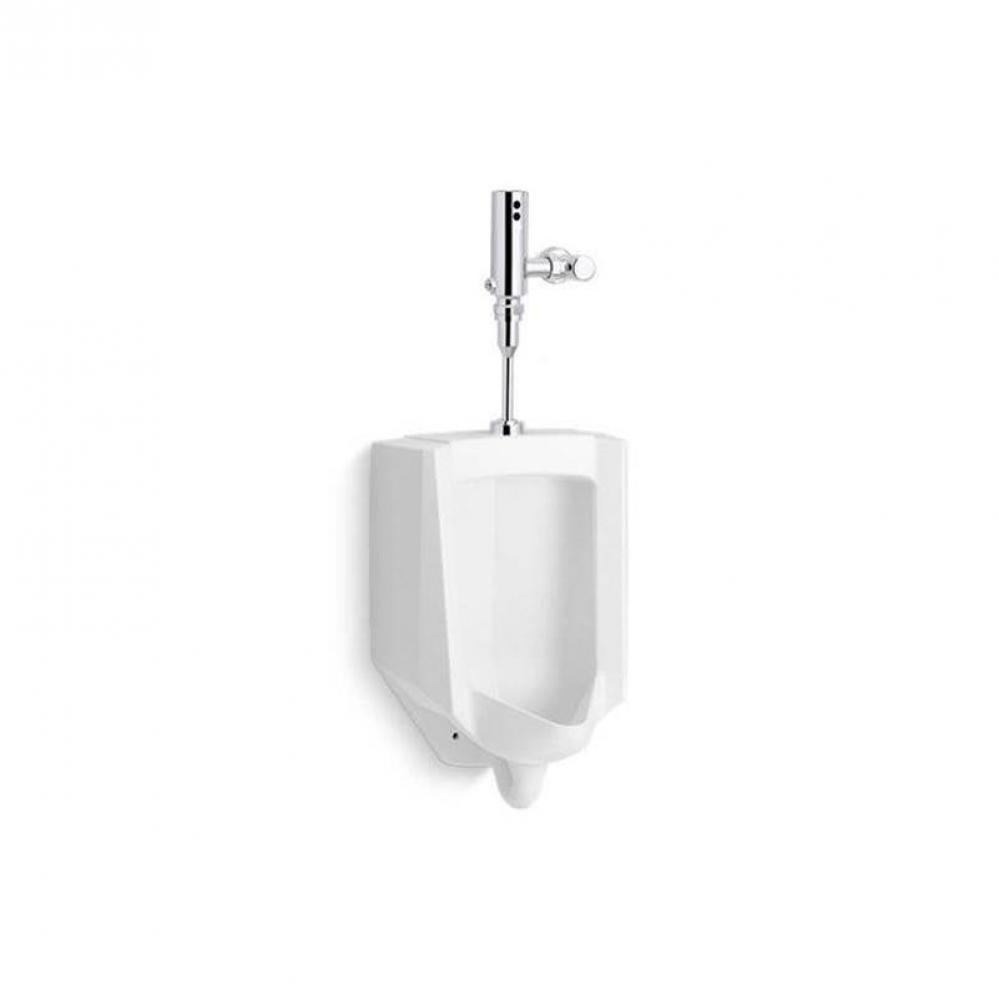

The newly redesigned Bardon high-efficiency urinal provides flexible flushing options along with a bold new contemporary look. The Bardon operates in the range from 0.125 to 1.0 gpf. When paired with a 0.5 gpf Mach Tripoint touchless flushometer, this urinal is ideal for water conservation installations, and qualifies as a High-Efficiency Urinal (HEU) that can help a building earn Water Efficiency points in the LEED® Green Building Rating System.

Details

Extra Data:

0.5 gpf (1.9 lpf)

Fixture and touchless flushometer combination is engineered for optimal performance

Includes anti-backsplash wall

Washout urinal

Refinement Options

Family:

Bardon

ADA Compliance:

Yes

Bullet10:

Chloramine and chlorine resistance on all rubber components exposed to waterway

Bullet11:

Locking stop cap provides protection against vandalism

Bullet12:

125-micron filter protects internal components

Bullet13:

High back pressure vacuum breaker

Bullet14:

Powered by a 30 year/875,000 cycle hybrid energy cell, based on 72 uses per day

Bullet15:

For this combination, order K-4991-ET urinal and K-10UH00G20 flushometer

Bullet16:

This product can help a building earn Water Efficiency points in LEED® Green Building Rating System

Bullet5:

3/4'' (19 mm) top spud

Bullet6:

Flush valve activation distance is factory-set

Bullet7:

No external flush volume adjustment ensures water conservation

Bullet8:

24-hour automatic sentinel flush keeps trapway fresh

Bullet9:

Mechanical override enables flushometer to be used manually even during a power outage

Country:

US

Description:

Bardon High-efficiency urinal with Mach Tripoint touchless 0.5 gpf HES-powered flushometer

Height:

26.81

Introduction Date:

12/2/2021

Length:

14.21

Material:

Vitreous China

Ship Weight:

0.2

Shipping Height:

0

Shipping Length:

0

Shipping Width:

0

Spec Sheet:

Spec Sheet

Watersense:

Yes

Website Link:

Website Link

Width:

18.49

Manufacturer Info

Manufactured By:

Kohler
