Product Overview

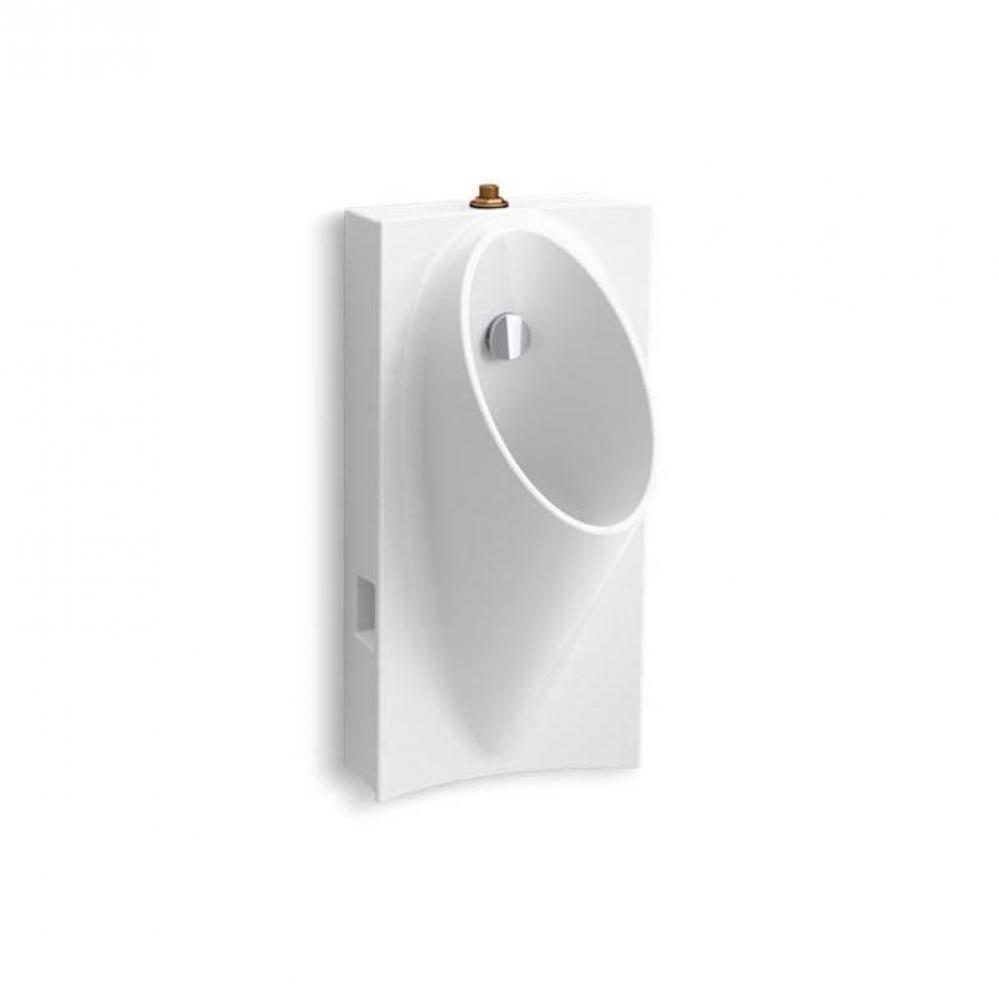

Modeled after the popular Steward waterless urinals, this Steward Hybrid urinal combines a sleek design aesthetic with a rinsing flush that prevents drainline issues and reduces maintenance. At 0.125 gpf, this high-efficiency urinal offers 80% water savings compared to standard 1.0-gpf urinals. The large footprint covers the old urinal wall print, making this model ideal for water conservation replacement projects.

Details

Extra Data:

3/4'' (19 mm) top spud

KOHLER-engineered water flushing spreader successfully rinses the inverted back wall, sides, and front of the urinal basin for a more sanitary customer experience

Revolutionary funnel design virtually eliminates splashback

Ultra-low consumption. Operates at 0.125 gpf (0.47 lpf)

Standard Information

Finish:

White

Plumbing Category:

Toilets

Plumbing Subcategory:

Urinals

Refinement Options

Family:

Steward

ADA Compliance:

Yes

Bullet5:

Includes removable strainer, 2'' outlet spud, universal mounting bracket, and hangers

Bullet6:

This product can help a building earn Water Efficiency points in LEED® Green Building Rating System

Bullet7:

Washout urinal

Bullet8:

0.125 gpf (0.47 lpf)

Bullet9:

15-5/8'' (397 mm) extended rim

CALGreen:

Yes

CEC:

Yes

Country:

MX

Description:

Steward Washout half-stall 0.125 gpf urinal, top spud

Finish Family:

White

Height:

29.625

Install Link:

Installation Link

Introduction Date:

8/8/2013

Length:

15.625

Material:

Vitreous China

Oversized:

Yes

Prop65:

Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ship Weight:

68

Shipping Height:

33.94

Shipping Length:

19.88

Shipping Width:

18.63

Spec Sheet:

Spec Sheet

Watersense:

Yes

Website Link:

Website Link

Width:

15

Manufacturer Info

Manufactured By:

Kohler
