Product Overview

Thermostatic technology allows you to maintain consistent temperature control in your showering system for the ultimate shower experience. This precision-engineered, best-in-class thermostatic valve comes mostly assembled for easy installation, and is designed for use with the elegant thermostatic valve control panel trim with recessed push-buttons. With four independently controllable ports, this valve is ideally suited for applications where up to four outlets are required.

Details

Extra Data:

3/4'' female NPT inlet connections

High-flow thermostatic mixing valve

Mechanically controlled thermostatic mixing valve maintains outlet temperature throughout shower experience

Up to 8 gpm (30.3 lpm) flow rate at 45 psi (3.1 bar) with maximum flow of 7 gpm (26.5 lpm) from one outlet

Refinement Options

Family:

Anthem

Bullet10:

Includes optional flow restrictor, limiting total flow to 1.75 gpm (6.6 lpm), for installations where water conservation or CEC compliance is desired

Bullet5:

1/2'' female NPT outlet connections

Bullet6:

Service stops with integral filters

Bullet7:

Antiscald protection

Bullet8:

Integrated adjustable high-temperature limit stop to control maximum water temperature

Bullet9:

Adjustable comfort setting (preset at approximately 104°F)

Country:

CN

Description:

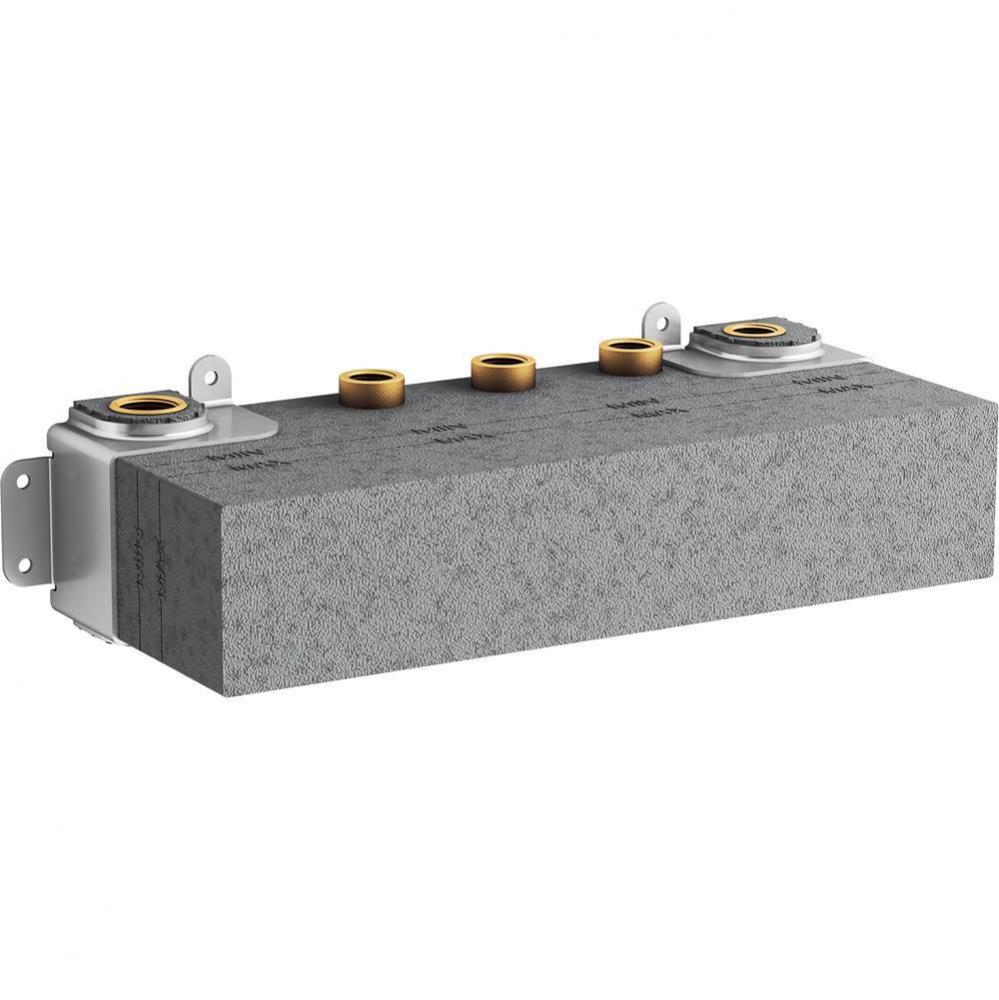

Anthem Four-port recessed mechanical thermostatic valve

Height:

4.88

Install Link:

Installation Link

Introduction Date:

1/5/2022

Length:

6.1

Material:

Brass/Plastic

Ship Weight:

12.15

Shipping Height:

7.6

Shipping Length:

18.9

Shipping Width:

8.54

Spec Sheet:

Spec Sheet

Website Link:

Website Link

Weight:

12.15

Width:

16.52

Manufacturer Info

Manufactured By:

Kohler
