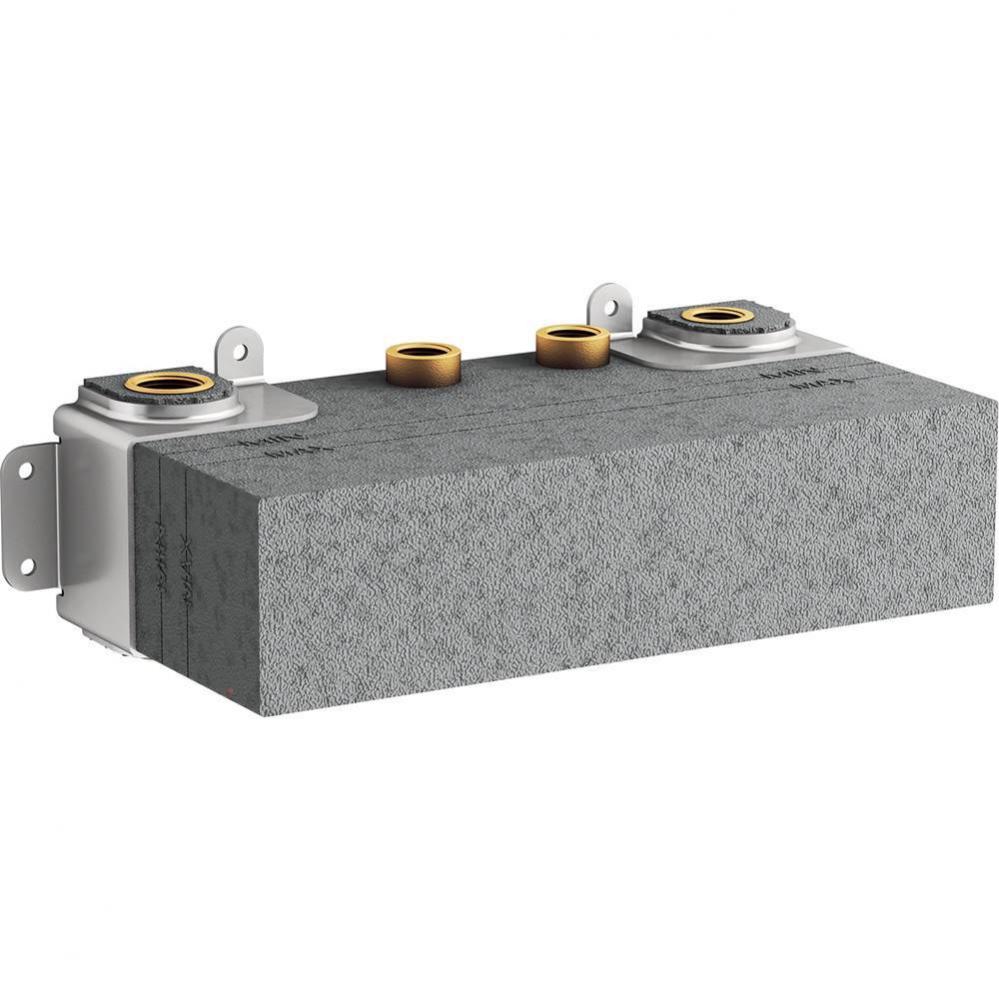

Thermostatic technology allows you to maintain consistent temperature control in your showering system for the ultimate shower experience. This precision-engineered, best-in-class thermostatic valve comes mostly assembled for easy installation and is designed for use with the elegant thermostatic valve control panel trim with recessed push-buttons. With three independently controllable ports, this valve is ideally suited for applications where up to three outlets are required.
Details
Extra Data:
3/4'' female NPT inlet connections
High-flow thermostatic mixing valve
Mechanically controlled thermostatic mixing valve maintains outlet temperature throughout shower experience
Up to 8 gpm (30.3 lpm) flow rate at 45 psi (3.1 bar) with maximum flow of 7 gpm (26.5 lpm) from one outlet
Refinement Options
Family:
Anthem
Bullet10:
Includes optional flow restrictor, limiting total flow to 1.75 gpm (6.6 lpm), for installations where water conservation or CEC compliance is desired
Bullet5:
1/2'' female NPT outlet connections
Bullet6:
Service stops with integral filters
Bullet7:
Antiscald protection
Bullet8:
Integrated adjustable high-temperature limit stop to control maximum water temperature
Bullet9:
Adjustable comfort setting (preset at approximately 104°F)
